The project so far.
9 images: the concept, 4 photographs of the site as it stands, and the drawing set.
Two of the cottages from the shared drive. A concept image, not a photograph of built work.

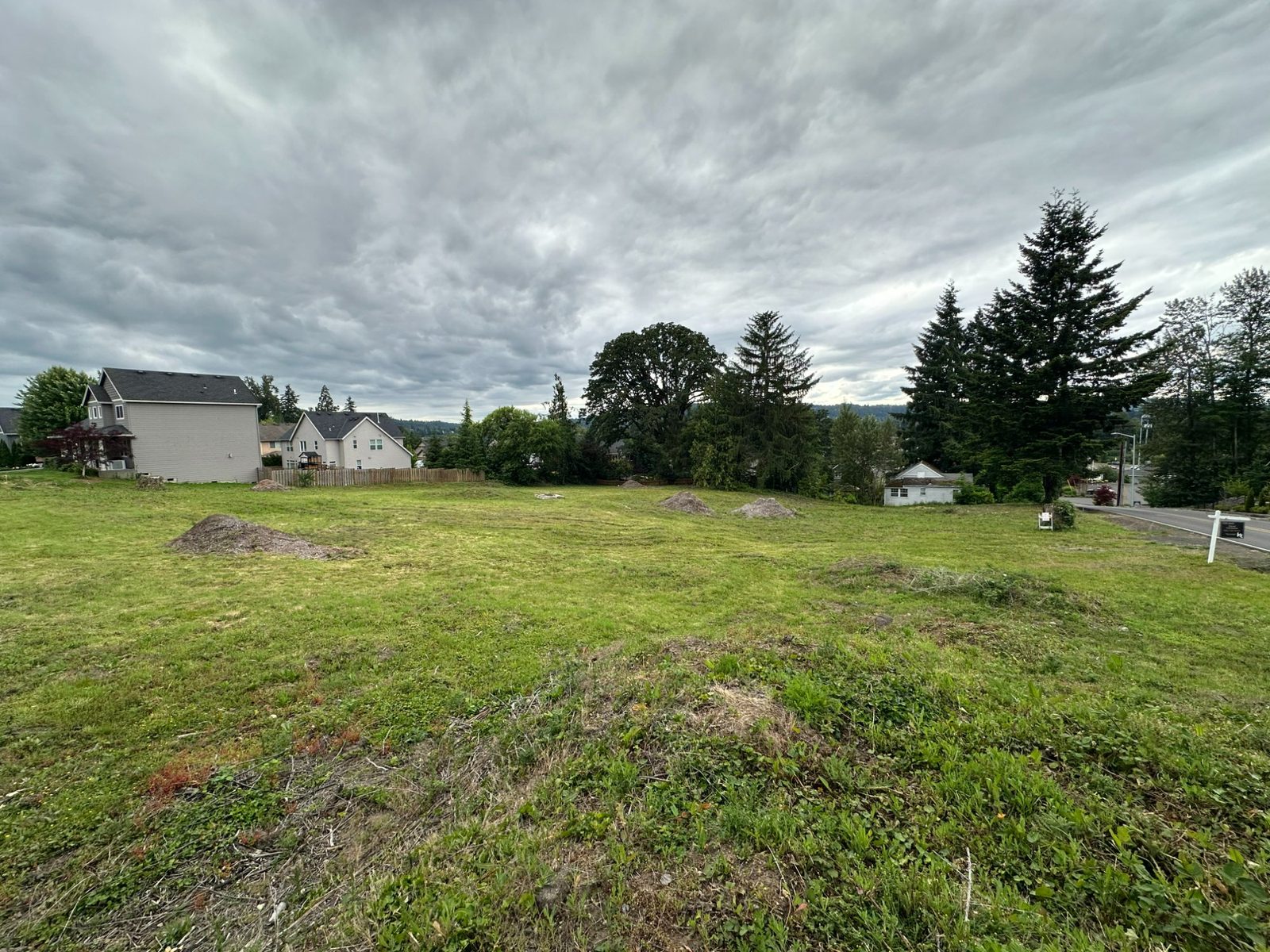

The lot cleared and stumped, looking north toward Forsythe Road.

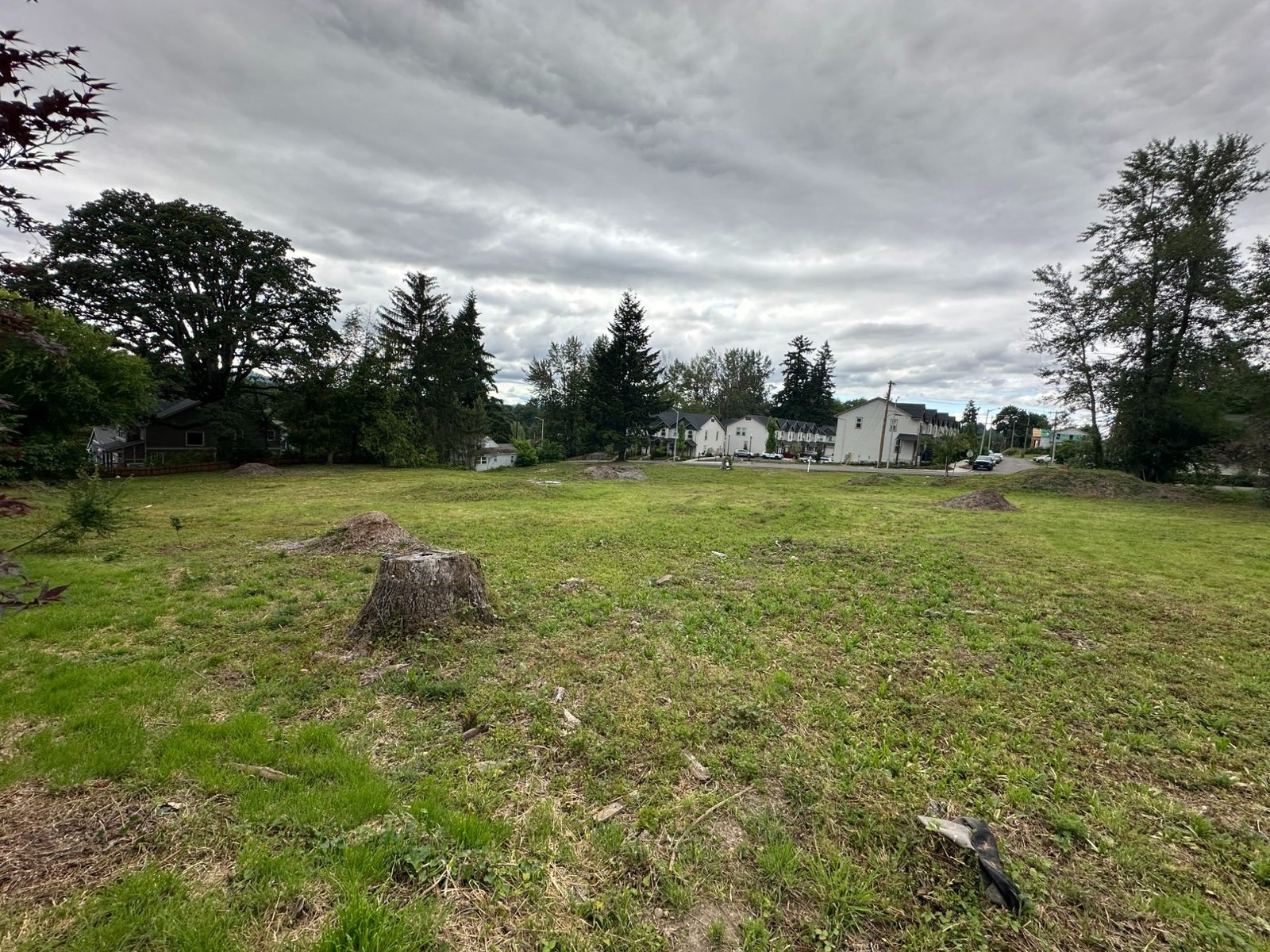

Across the lot toward the townhomes on the far corner.

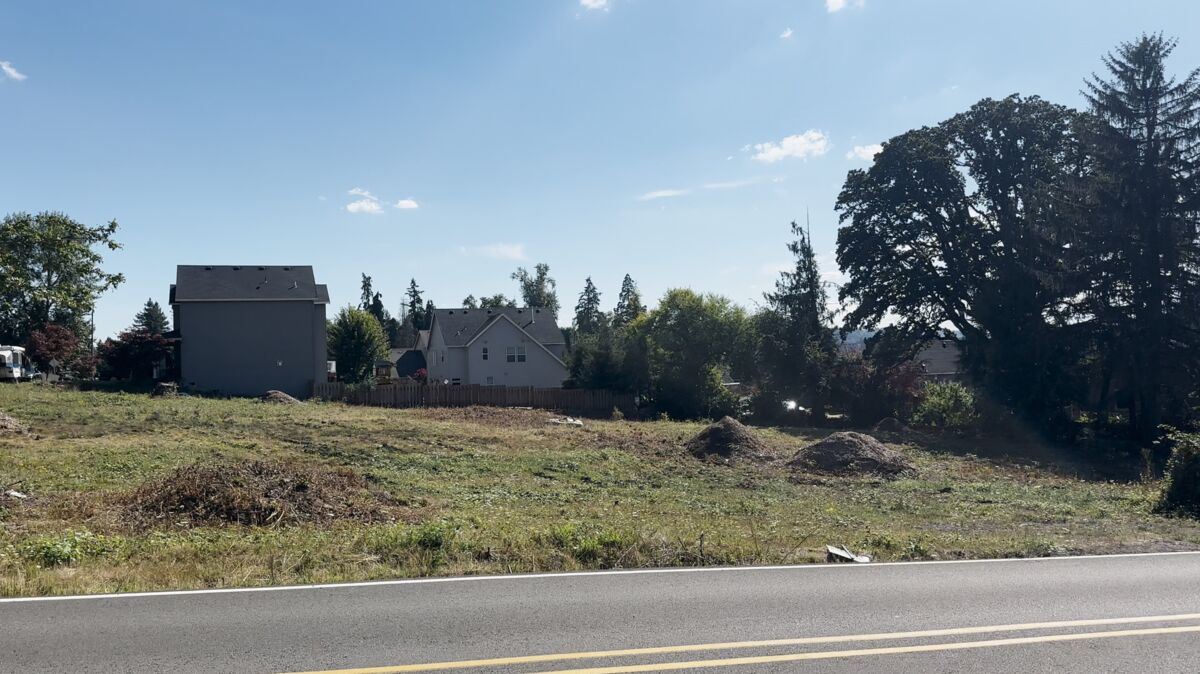

Road frontage on a clear day, with the neighbouring homes behind.

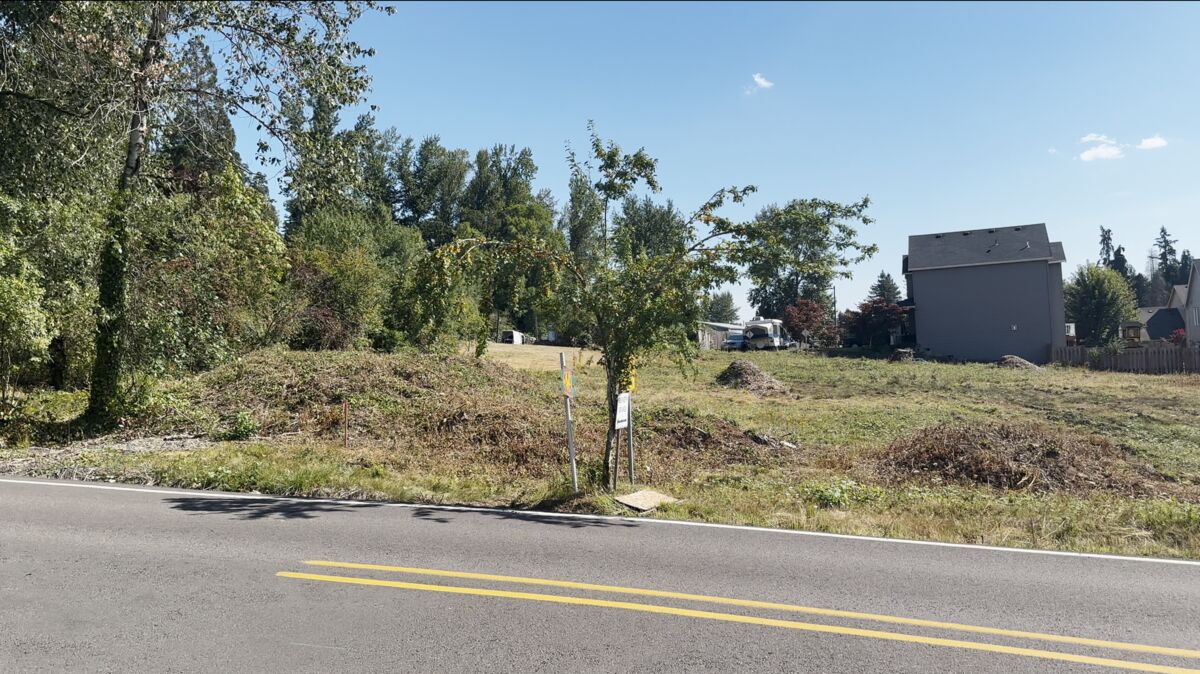

Frontage at the marker stake on the property line.

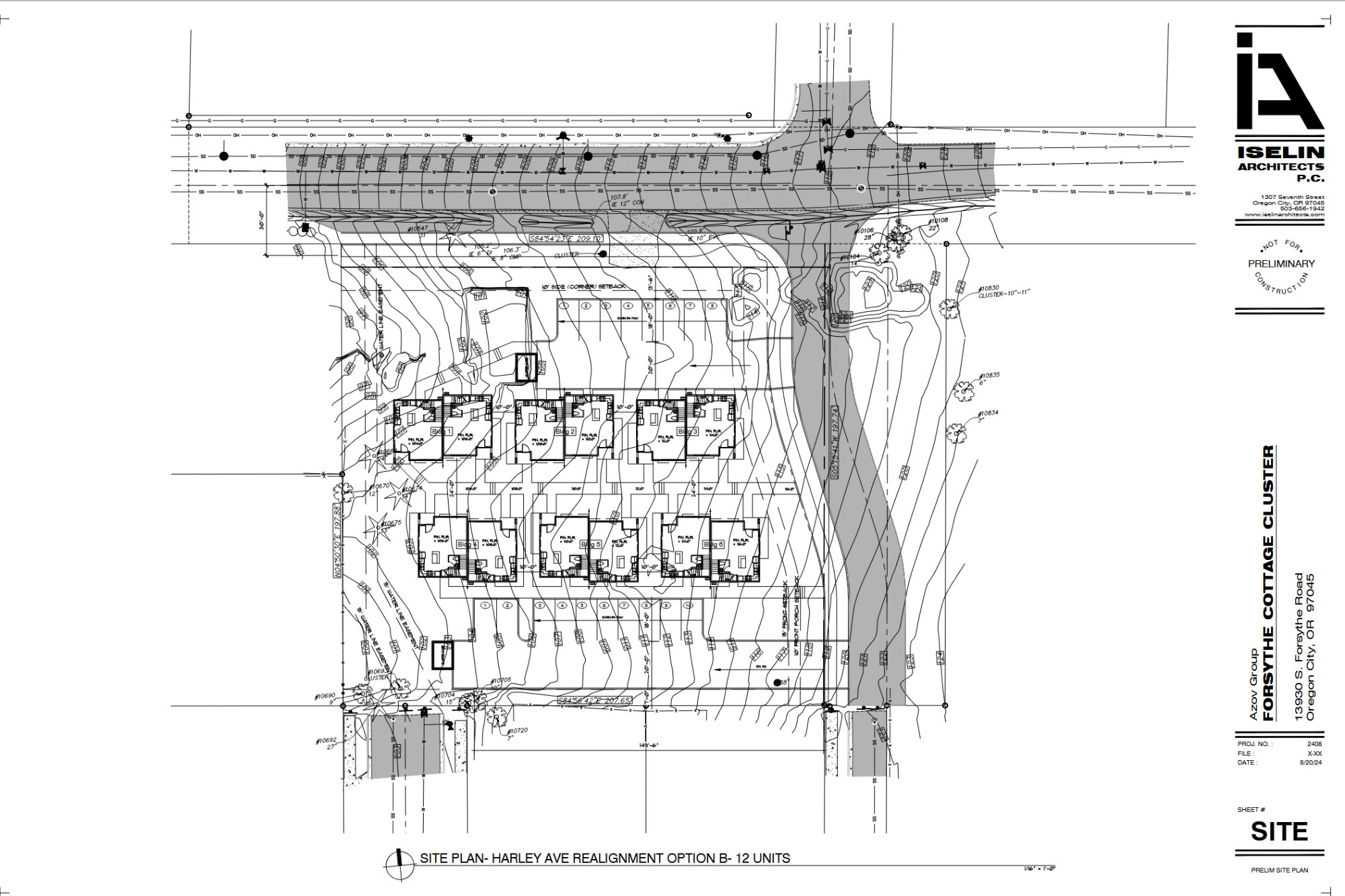

Preliminary site plan, Harley Ave realignment option B. Six buildings, twelve units. Marked not for construction.

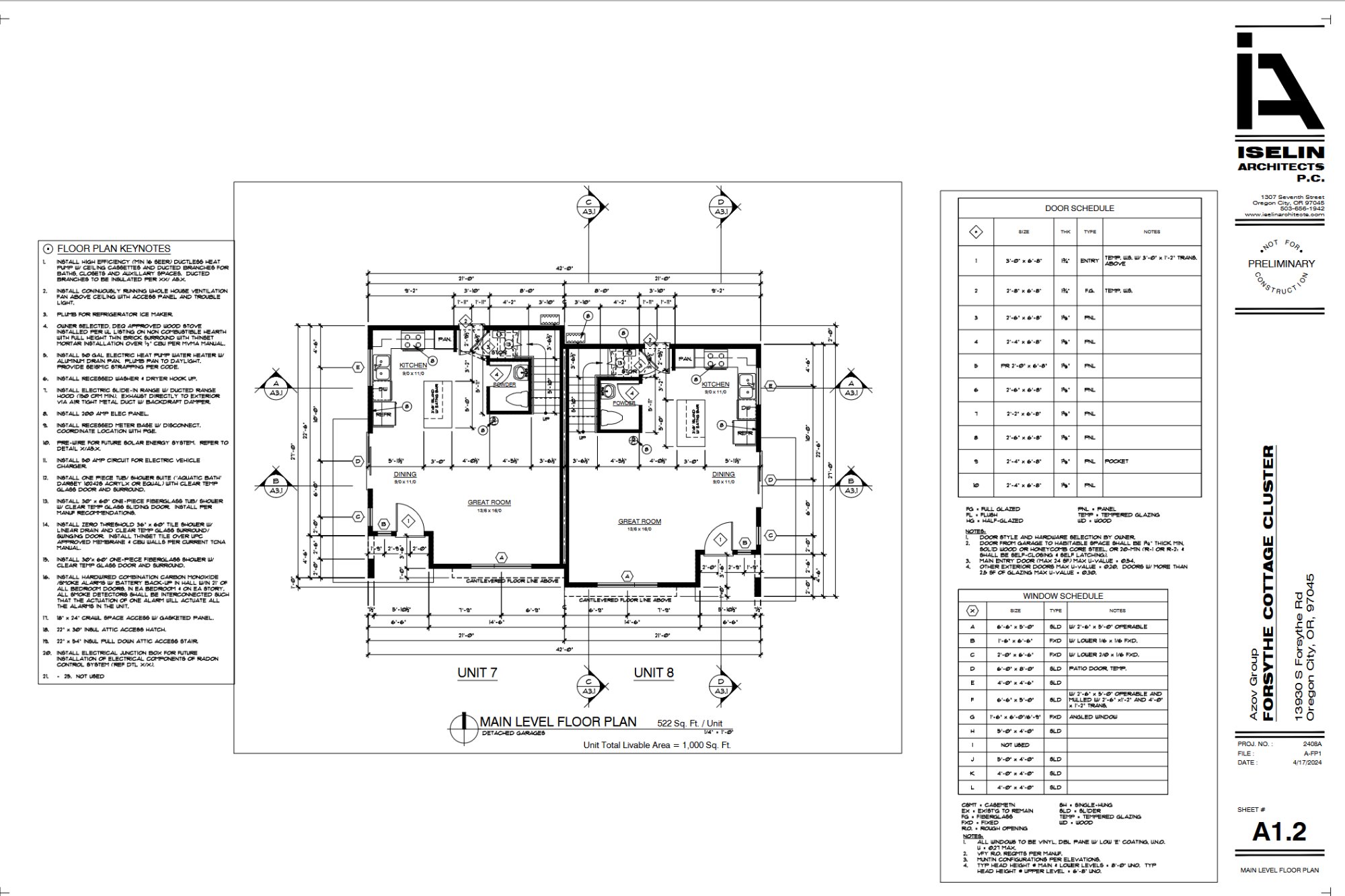

Main level plan for units 7 and 8, sheet A1.2. 522 sq ft on this level, 1,000 sq ft livable per unit.

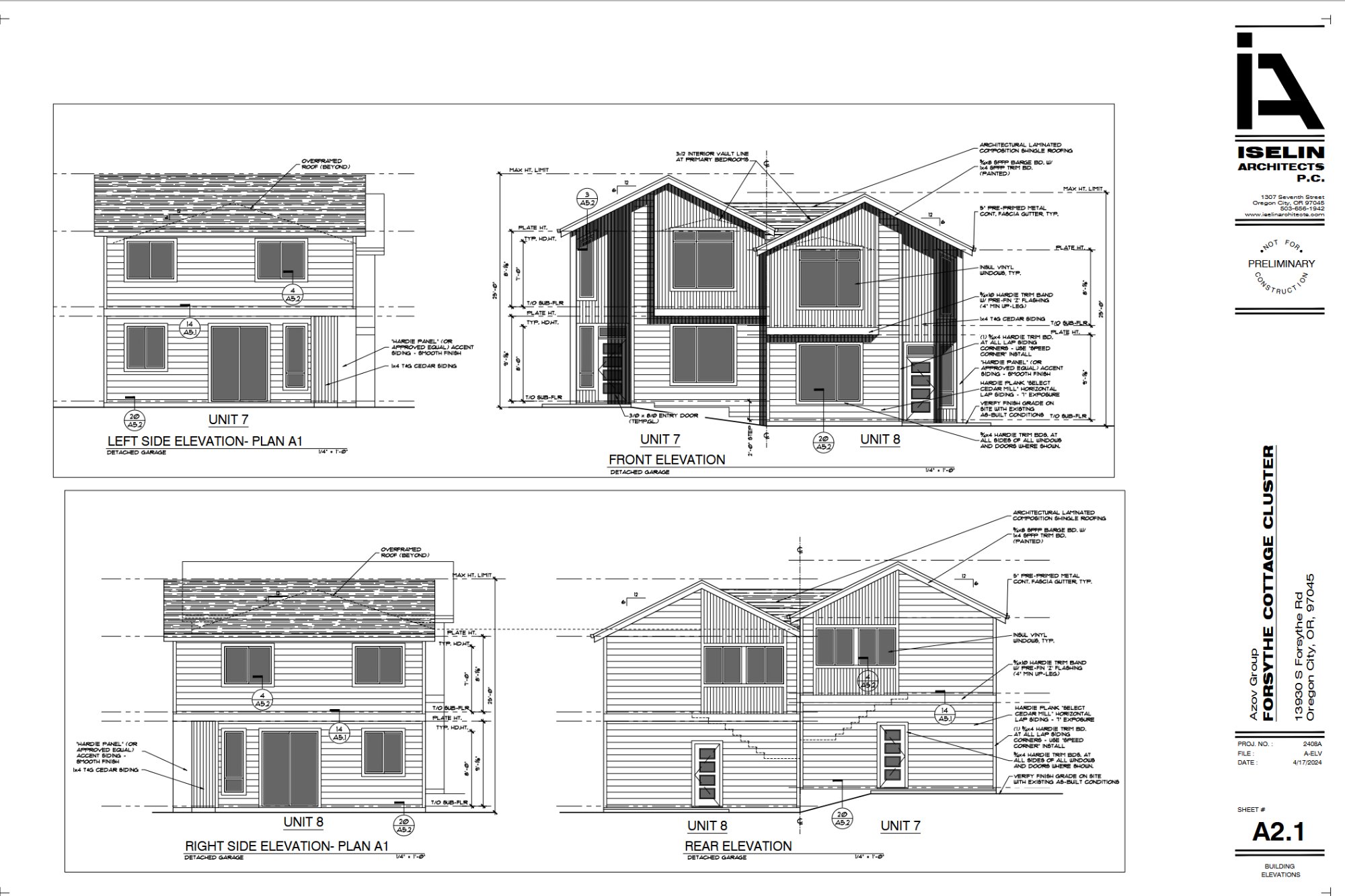

Building elevations, sheet A2.1. Hardie lap and panel siding with cedar accents.

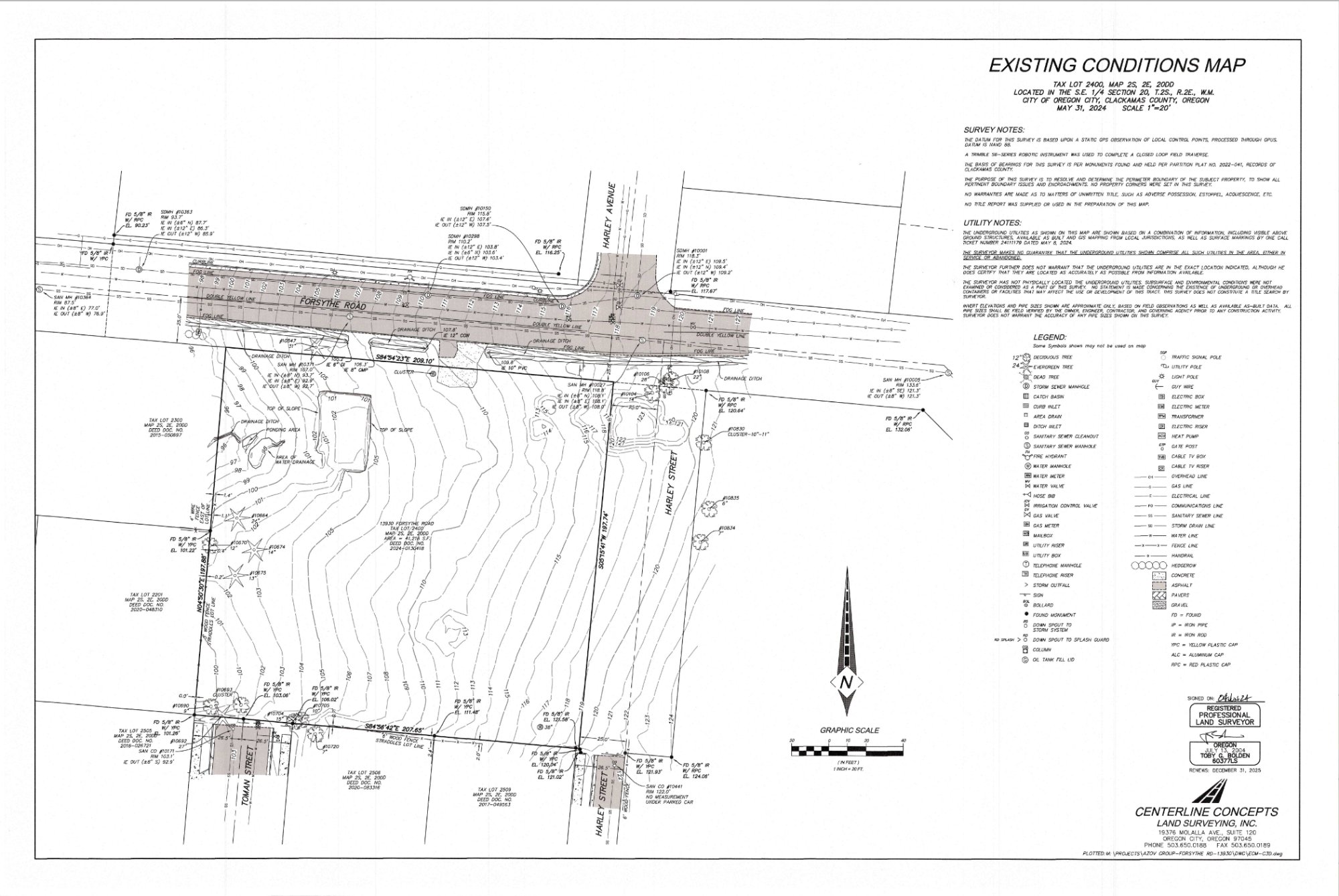

Existing conditions map for tax lot 2400. Lot area 41,218 sq ft.
